Home> Product>Motor

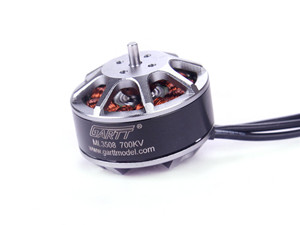

: ML3508-700KV 460W brushless motor; Type:MT-024; Specification,
Motor KV :700KV RPM/V
Motor Resistance (RM) :0.0746 Ω
Idle Current (Io/10V) :0.5A/10V
Max Continuous Current :28A
Max Continuous Power :460W
Weight :≈105g/3.7oz
Max Lipo Cell :4S
Motor Diameter :42mm/1.651in
Motor Body Length :25.5mm/1.004in
No. of Stator Arms 12
Pole Count :14
Overall Shaft Length :33.6mm/1.32in
Shaft Diameter :3.175mm/0.125in
Bolt holes spacing :19mm/25mm/0.75in/0.98in
Bolt thread :M3×6

Specifications
